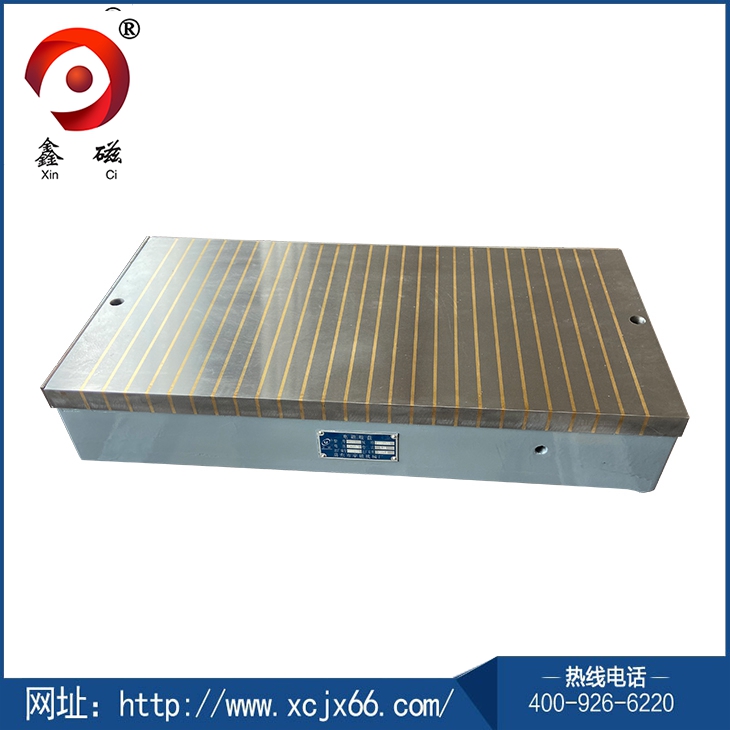

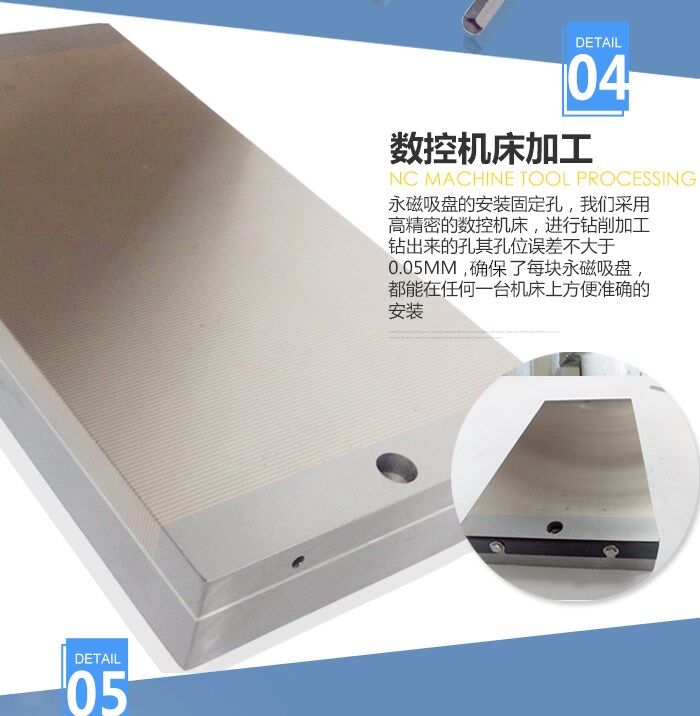

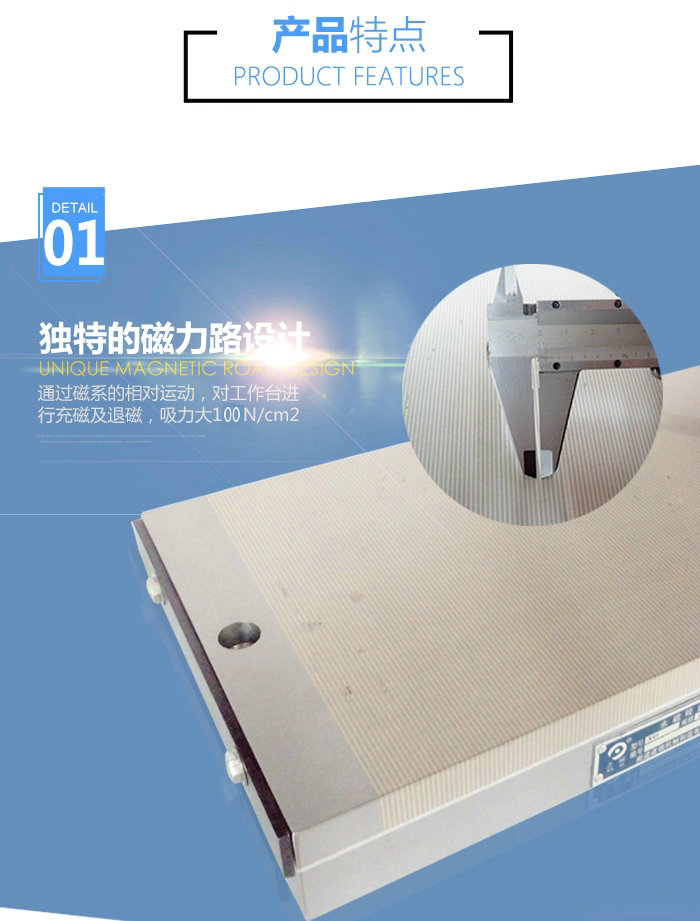

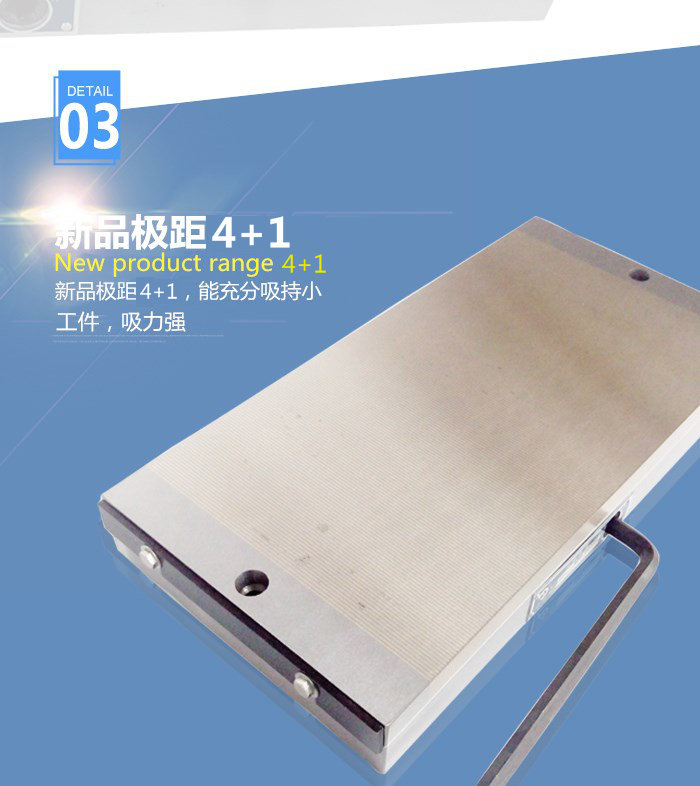

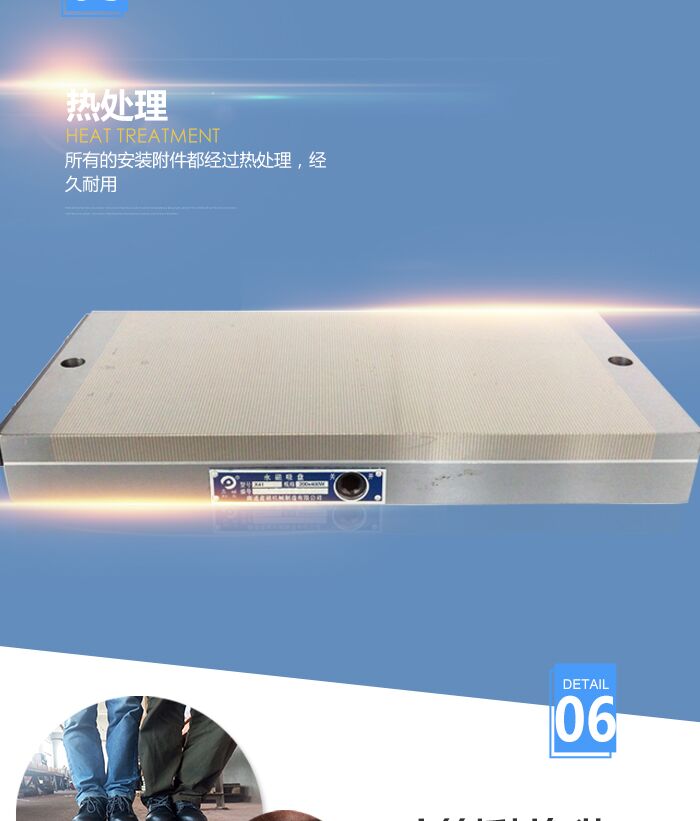

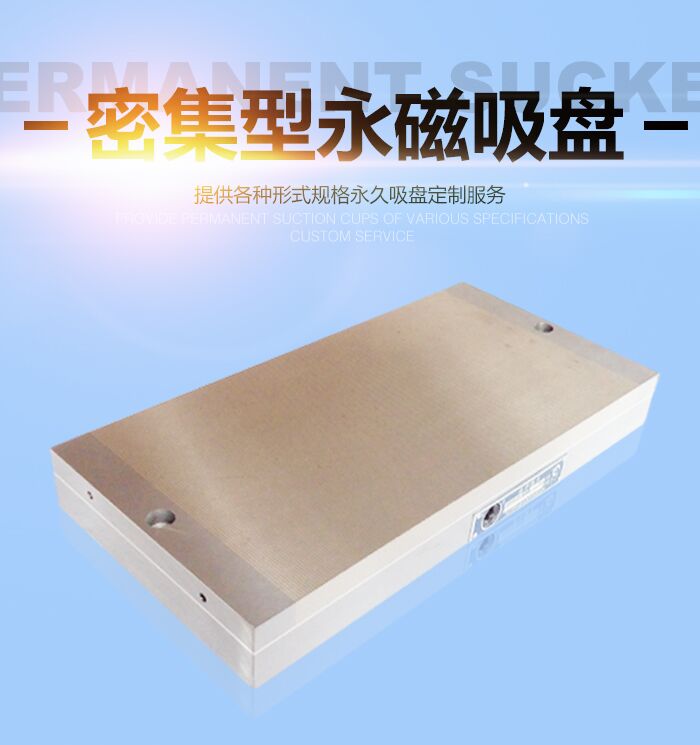

| 密極型永磁吸盤 | ||||||

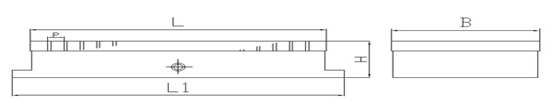

| 規格型號 | L1 | L | H | B | P | 凈重 |
| (M&S) | (mm) | (mm) | (mm) | (mm) | (mm) | (Kg) |
| X41 100×100MCu | 118 | 100 | 43 | 100 | 4+1 | 4 |
| X41 100×150MCu | 168 | 150 | 43 | 100 | 4+1 | 6 |
| X41 100×175MCu | 195 | 175 | 40 | 100 | 4+1 | 6.5 |
| X41 100×200MCu | 220 | 200 | 40 | 100 | 4+1 | 7 |
| X41 100×220MCu | 240 | 220 | 40 | 100 | 4+1 | 7 |
| X41 100×225MCu | 245 | 225 | 45 | 100 | 4+1 | 7 |
| X41 100×250MCu | 270 | 250 | 40 | 100 | 4+1 | 8 |
| X41 100×300MCu | 320 | 300 | 40 | 100 | 4+1 | 10 |
| X41 110×230ZCu | 258 | 230 | 77 | 110 | 4+1 | 9 |
| X41 120×200MMC | 220 | 200 | 49 | 120 | 4+1 | 9 |
| X41 125×250MCu | 270 | 250 | 40 | 125 | 4+1 | 10 |
| X41 125×300MCu | 320 | 300 | 45 | 125 | 4+1 | 12 |
| X41 125×315MCu | 335 | 315 | 40 | 125 | 4+1 | 13 |
| X41 150×150MCu | 170 | 150 | 40 | 150 | 4+1 | 7 |
| X41 150×217MCu | 298 | 217 | 52 | 150 | 4+1 | 11 |
| X41 150×220MCu | 220 | 220 | 51 | 150 | 4+1 | 13 |
| X41 150×250MCu | 298 | 250 | 52 | 150 | 4+1 | 15 |
| X41 150×300MCu | 348 | 300 | 40 | 150 | 4+1 | 16 |
| X41 150×350MCu | 398 | 350 | 45 | 150 | 4+1 | 17 |
| X41 150×400MCu | 430 | 400 | 44 | 150 | 4+1 | 27 |
| X41 150×450MCu | 498 | 450 | 41 | 150 | 4+1 | 31 |
| X41 150×460MCu | 460 | 460 | 44 | 150 | 4+1 | 33 |
| X41 160×460MCu | 508 | 460 | 51 | 150 | 4+1 | 33 |
| X41 180×400MCu | 430 | 400 | 44 | 180 | 4+1 | 21 |
| X41 200×200MCu | 220 | 200 | 50 | 200 | 4+1 | 16 |
| X41 200×350MCu | 370 | 350 | 50 | 200 | 4+1 | 28 |
| X41 200×400MCu | 400 | 400 | 44 | 200 | 4+1 | 32 |
| X41 200×450MCu | 470 | 400 | 44 | 200 | 4+1 | 35 |
| X41 200×460MCu | 508 | 460 | 51 | 200 | 4+1 | 36 |
| X41 200×500MCu | 548 | 500 | 51 | 200 | 4+1 | 39 |
| X41 200×560MCu | 580 | 560 | 50 | 200 | 4+1 | 44 |
| X41 200×600MCu | 620 | 600 | 50 | 200 | 4+1 | 47 |
| X41 230×450MCu | 480 | 450 | 44 | 230 | 4+1 | 45 |
| X41 230×1200MCu | 1200 | 1200 | 52 | 230 | 4+1 | 115 |
| X41 250×250MCu | 270 | 250 | 50 | 250 | 4+1 | 25 |
| X41 250×400MCu | 420 | 400 | 50 | 250 | 4+1 | 39 |
| X41 250×500MCu | 500 | 500 | 45 | 250 | 4+1 | 49 |
| X41 250×600MCu | 600 | 600 | 44 | 250 | 4+1 | 59 |
| X41 300×500MCu | 528 | 500 | 53 | 300 | 4+1 | 59 |
| X41 300×600MCu | 636 | 600 | 48 | 300 | 4+1 | 70 |
| X41 400×400MCu | 428 | 400 | 44 | 400 | 4+1 | 60 |
| X41 500×500MCu | 538 | 500 | 49 | 500 | 4+1 | 64 |
| X41 580×580MCu | 580 | 580 | 50 | 580 | 4+1 | 66 |
- 矩形電磁吸盤
- 用以吸持較大導磁性材料進行中等強度磨削加工，吸力100N/cm2。高剛性、精度穩定，熱變數非常小。選用優質、低含碳量，導磁性能優良的鋼材制造，激磁線圈經過獨特的設計和嚴格的浸漬處理使吸盤吸力大，剩磁小，溫升低，安全可靠，使用壽命長。更多規格可按用戶要求定制.詳詢：13906283288 13914387366
